Air Compressors

JAPEILS COMPRESSION & SEIZE AIR COMPRESSORS

Bringing Energy-Efficient Air Compressor Technology with Industry 4.0 Technology to Nigeria

JAPEILS Compression Nigeria Ltd is the exclusive representative of SEIZE Air Compressors in Nigeria. Through a strategic agency agreement signed on July 17, 2025, we deliver cutting-edge, energy-efficient compressed air solutions to industries across the nation.

SEIZE, a Sino-German joint venture with over 20 years of R&D experience, is a global pioneer in permanent magnet VSD technology, oil-free compression, and magnetic bearing systems.

Detailed Oil-Free Model Specs

SWT Series – Oil-Free Two-Stage Water-Lubricated Screw

Pressure: 0.7–1.0 MPa
Flow: 1.0–15.0 m³/min
Power: 7.5–110 kW
Drive: PM/IE4 VFD motor (IP55)
Cooling: Water-circuit plate HEX; anti-scale design
Controls: PLC + 7″ HMI; Modbus/RS-485; remote monitoring
Noise: 68–75 dB(A)
Options: Heat-recovery, integrated dryer/filters, SS piping

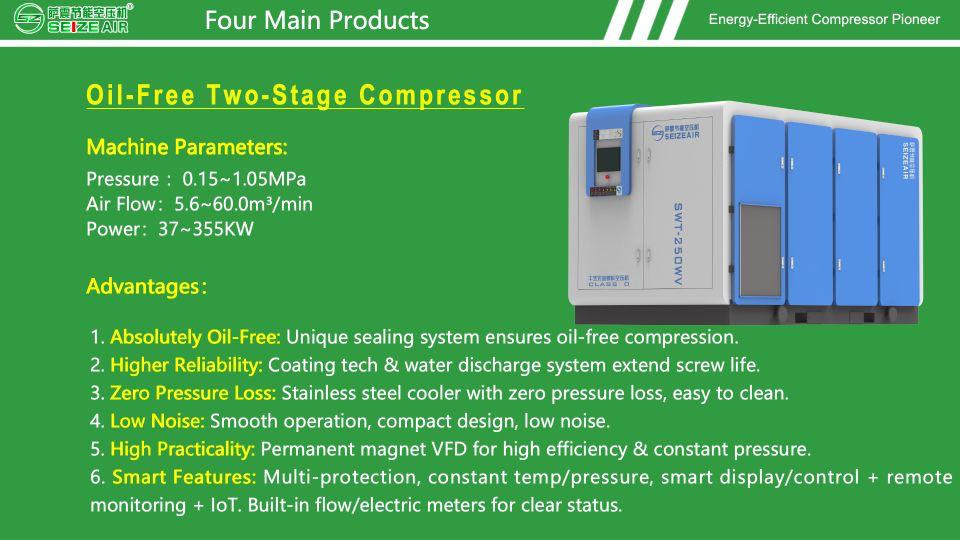

CH Series – Oil-Free Two-Stage Dry Screw

Pressure: 15–1.05 MPa
Flow: 6–60.0 m³/min
Power: 37–355 kW
Cooling: Air or water; stainless intercooler/aftercooler
Controls: PID constant-pressure; IoT telemetry
Noise: 70–78 dB(A)
Options: Heat-recovery, integrated dryer, buffer tank

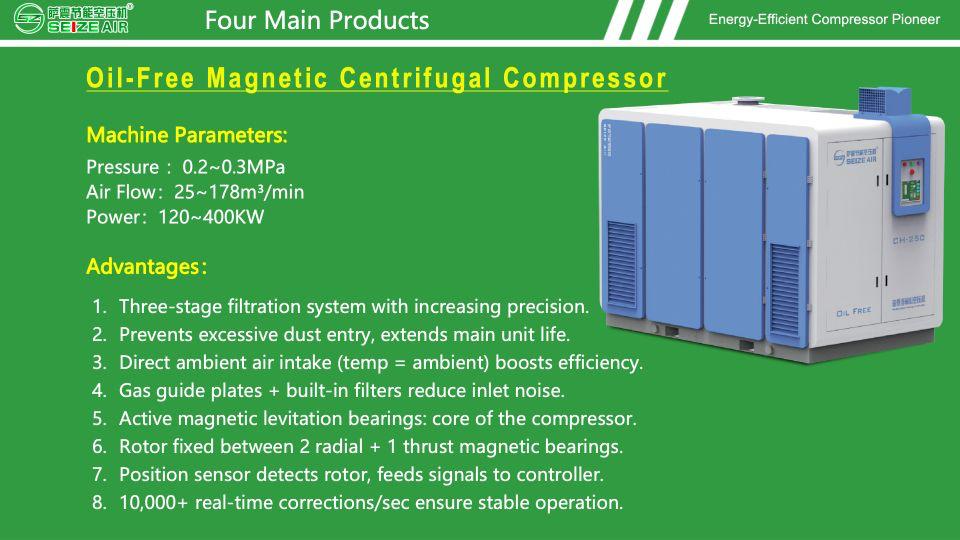

Oil-Free Magnetic Centrifugal

Pressure: 2–0.3 MPa| Flow: 25–178 m³/min | Power: 120–400 kW
Bearings: Active magnetic levitation (2 radial + 1 thrust)
DSP controls: 10,000+ real-time corrections/sec; anti-surge
Intake: Direct ambient; built-in filters reduce inlet noise

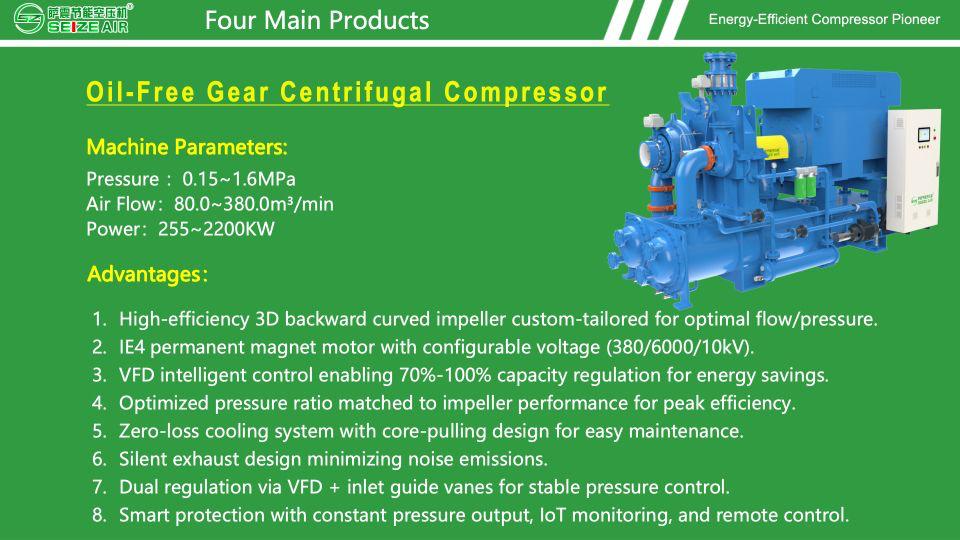

Oil-Free Gear Centrifugal

Pressure: 15–1.6 MPa| Flow: 80–380 m³/min | Power: 255–2200 kW
Impellers: 3D backward-curved, optimized pressure ratio
Turndown: 70–100% via VFD + IGV
Options: Redundant PLC, critical-duty filtration, EX packages (on request)

Sectors We Serve

Oil & Gas – Up/Mid/Downstream: API-style instrument air, pneumatic actuators, analyzer shelters, nitrogen-skid utility air, pigging and valve control.
Power & Energy (Thermal/CCGT/IPP, Transmission): Instrument air, gas-turbine purge, ash/FGD systems, balance-of-plant.
Pharma & Medical Devices: Cleanrooms, coating, capsule & blister packing (with sterile filtration).
Food & Beverage: Bottle blowing, conveying, packaging, dairies/breweries.
Electronics & Semiconductors: PCB cleaning, SMT, battery & lens production.
Automotive: Paint booths, robotics, testing rigs.
Cement & Minerals: Conveying, baghouses, instrumentation.
Mining & Metals: Pneumatics, dust control, plant utilities.
Textiles: Air-jet weaving, spinning, loom controls.
Hospitals & Healthcare: Medical air (with medical-grade dryers/filtration per local codes).
General Manufacturing: Plastics, packaging, glass, printing, woodworking.

Oil-Free Benefits
After-Sales Service Commitment
Why Choose SEIZE Air Compressors?

Oil-Free Benefits

Class 0 purity (ISO 8573-1)
Safety & cleanliness for product-contact processes
Lower total cost of ownership (no oil circuits/consumables)
Energy savings with PM-VSD + heat recovery
IoT-enabled monitoring and predictive maintenance
Let’s energize Nigerian industry with sustainable, intelligent air compression.

After-Sales Service Commitment

SEIZE and JAPEILS ensure reliable after-sales service and support, including:

Installation & commissioning
Operator training
Preventive & corrective maintenance
Technical troubleshooting
Genuine spare parts supply
Support for warranty repairs within Nigeria

🧑‍🏭 Local technicians at JAPEILS Compression receive technical training from SEIZE and will handle first-level maintenance, repair, and installations.

Why Choose SEIZE Air Compressors?

🌟Proven Energy Savings – 20–40% lower power consumption
🔧Smart Technology – Two-stage compression, variable speed, and permanent magnet motor systems
🔋Built for Longevity – Rugged and efficient in harsh African climates
🌐Industry 4.0 Ready – Remote monitoring, diagnostics, and performance optimization

Free enquiry

+234 805 607 7776
